VIRAL DISEASES
MM 555-730





Table of Contents

Educational Objectives

General

1.    To reinforce the concept of the target organ in viral disease

2.    To define and explain viral taxonomy

3.    To differentiate taxonomic and ecologic viral classification

4.    To relate viral disease diagnosis to viral structure and host cell damage

Specific educational objectives (terms and concepts upon which you will be tested)


Discussion of viral diseases caused by specific families of viruses.

We do not have the detailed knowledge of the physiology, genetics, metabolism and structure of viruses to classify them according to evolutionary development as has been done with the larger micro-organisms (e.g., bacteria, fungi and protozoa). The most accepted method of classification is based on nucleic acid type, size, morphology and antigenic properties. Utilizing these criteria the viruses have been separated into nineteen families. Further subdivision into genera within the families occurs in most cases.


Classification of viruses into families based on chemical & physical properties

Nucleic Acid Core
Capsid Symmetry
Virion: Enveloped or Naked
Physical Type of Nucleic Acid
Viral Family
DNA

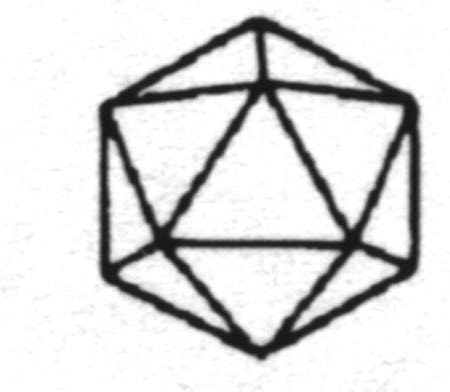

Icosahedral


Naked


ss
ds circular
ds
Parvoviridae
Papovaviridae
Adenoviridae
. .
Enveloped
ds
Herpesviridae
.
Complex
Complex coats
ds
Poxviridae
.
.
.
ds circular
Hepadnaviridae
RNA



Icosahedral



Naked



ss
ss
ds segmented
Picornaviridae
Caliciviridae
Reoviridae
.
.
Enveloped
ss
Togaviridae
.
Unknown or complex



Enveloped



ss
ss segmented
ss diploid
Flaviviridae
Arenaviridae
Retrobiridae
.
Helical










Enveloped










ss segmented
ss
ss segmented
ss
ss
ss
Bunyaviridae
Coronaviridae
Orthomyzoviridae
Paramyxoviridae
Rhabdoviridae
Flioviridae

    Each viral family can be discussed based on the human diseases caused by members of that family.

Family Parvoviridae (parvoviruses)

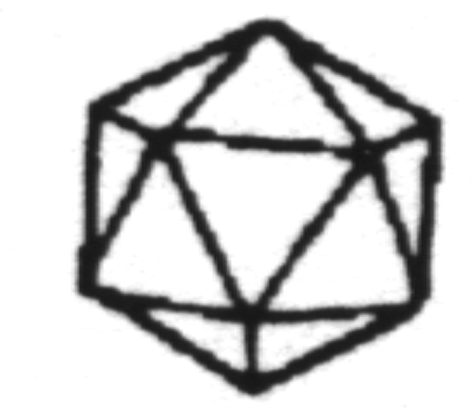

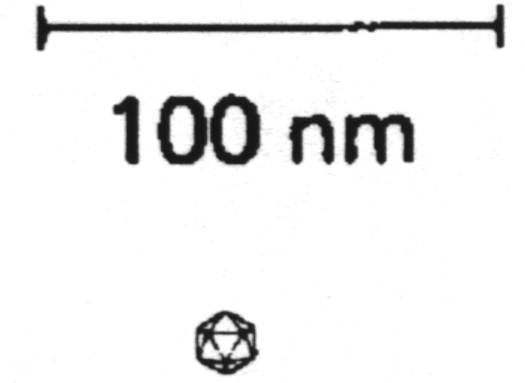

These are the smallest of the DNA-containing viruses. The linear DNA is single stranded and contains three to four genes. The virion is a naked icosahedron with 32 capsomers. The word parvo is taken from the Latin word parvus meaning small. The members of this family causing human infections are:


Parvoviridae
Family Papovaviridae (papovaviruses)

The family name is taken from the disease caused by members of the group i.e., Papilloma, Polyoma and Vacuolating viruses. These are small DNA-containing viruses. The DNA is double-stranded and circular and contains five to eight genes. The virion is naked icosahedron with 72 capsomers. Members of this family include:

Papovaviridae

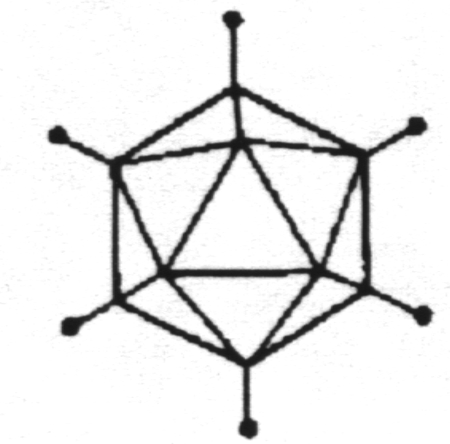

Family Adenoviridae (adenoviruses)

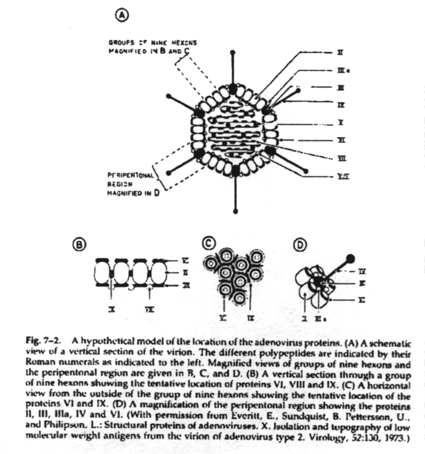

The original virus in this group was isolated from adenoid tissue, thus the name adenovirus. The 89 members of this group all have double-stranded DNA which contains about 30 genes. The virion is a naked icosahedron. All members of this group have a common family antigen in the hexon capsomer and a second group-specific antigen in the penton capsomere. Species are determined by individual type-specific antigens found in the hexon capsomer. From the vertex at each of the 12 penton capsomers extends a long fiber with a knob at its end. This fiber contains a hemagglutinin that is antigenically distinct for each serotype. As a result, one can determine type specificity using a hemagglutinin inhibition test.

Adenoviridae

Adenoviridae

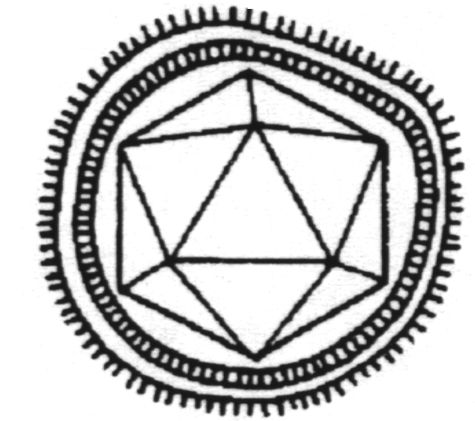

Family Herpesviridae (herpesviruses)

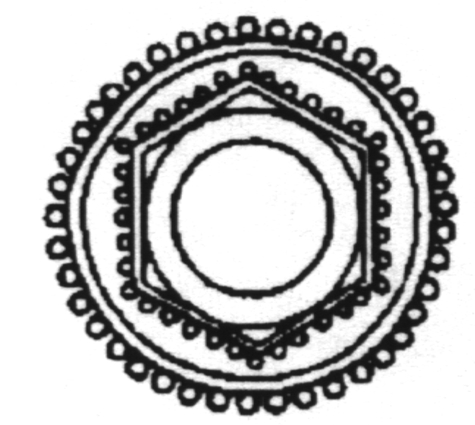

The family name is taken from the Greek verb, herpein, meaning "to creep." The name refers to the fact that the members of this family often cause latent recurring infections which progress slowly. These are medium-sized, enveloped, viruses containing double-stranded DNA.

Genetically, this is the second most complex family of viruses; there are about 160 genes in each species. The virion is an icosahedron with 162 capsomeres. There are eight human serotypes:

Family Poxviridae (poxviruses)

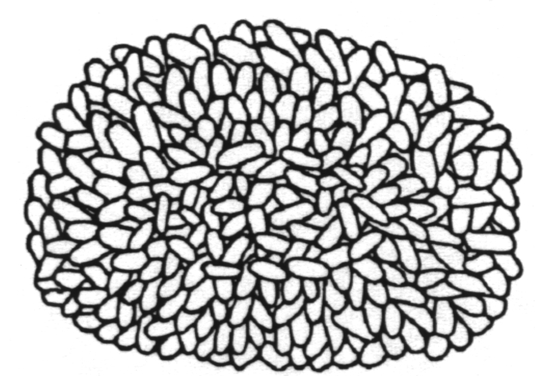

The family name is taken from the major disease symptom caused by these organisms, the pox. The pox is an elevated lesion of the skin. The members of this family are the largest of all the viruses and are considered to be an evolutionary intermediate between the viruses and the bacteria. The viral particles (sometimes called elementary bodies) are somewhat rounded, brick-shaped, or ovoid, and have a complex structure consisting of an internal central mass, the nucleoid, surrounded by two membrane layers. The surface is covered with ridges which may be tubules or threads. All poxviruses are related immunologically by a common internal antigen. They are divided into genera on the basis of their more specific antigens, nucleic acid homology, morphology and natural hosts. The entire replication cycle occurs in the cytoplasm. The viruses causing human disease include:

Poxviridae
Family Hepadnaviridae

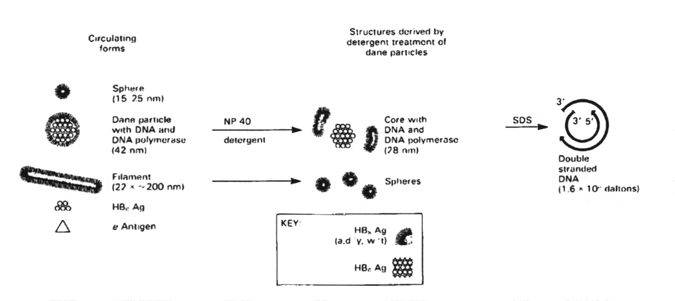

The family name comes from the major disease caused by members of this group (hepatitis) and the type of nucleic acid found in the virion (DNA). These are enveloped viruses with a complex capsid symmetry. The nucleic acid is circular and partially double-stranded and encodes four genes.

Hepadnaviridae
Family Picornaviridae

The family name comes from the word, pico, meaning small and RNA denoting the type of nucleic acid found in these viruses. These are naked viruses containing sufficient single stranded RNA to code for six to nine genes. They are the smallest of the RNA viruses. The naked virus has icosahedral symmetry with 32 capsomers. The members of this family causing human disease are:

Family Caliciviridae

The family name comes from the Latin word, caliculus, meaning "cup-shaped." In electronmicrographs these viruses have the appearance of a small cup in the shape of the Star of David, i.e., a six-pointed star. These are naked icosahedral viruses containing linear single-stranded RNA coding for four to six genes. These viruses are morphologically similar to the Picornaviridae but about 25% larger. There are five antigenic types. The members of this family causing human disease are:


Family Reoviridae (reoviruses)

The name is derived from the phrase "respiratory enteric orphan viruses." The more than 150 members of this group have segmented (10-12 segments) double-stranded RNA which contains 20-30 genes. The virions are naked double icosahedrons with 32 large capsomeres in the outer capsid. The viruses in this family causing human disease are:

Reoviridae

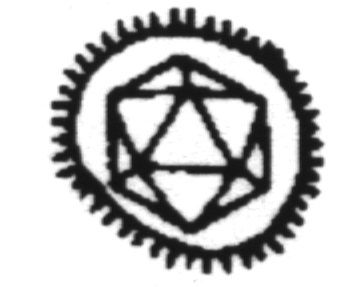

Family Togaviridae

The name is derived from the Latin word, toga, meaning "coat," which refers to the fact that the icosahedral virion has an envelope. It is thought that the capsid contains 32 capsomeres. The nucleic acid is single-stranded RNA.

Togaviridae

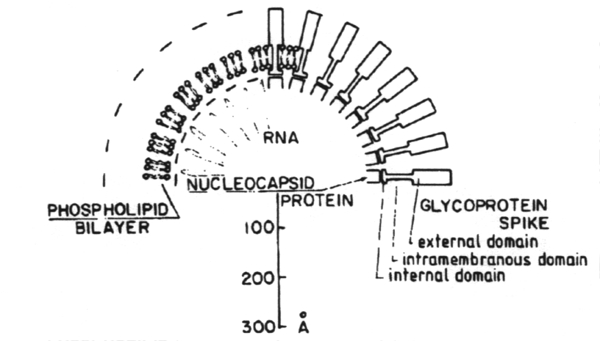

Schematic model of an alphavirus particle

Members of this family are:

Family Flaviviridae

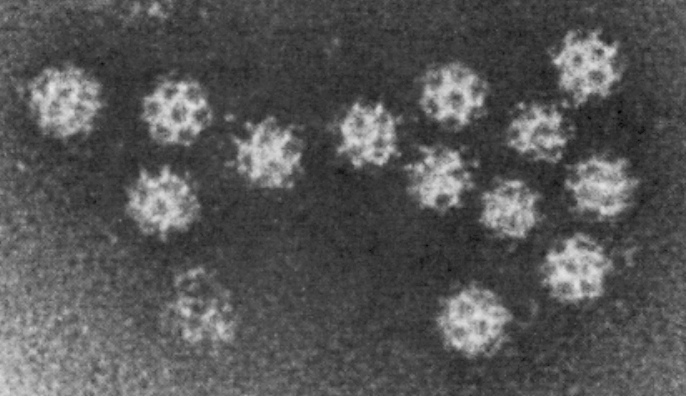

The name is taken from the Latin word flavus, meaning "yellow." This refers to the fact that this is the family of the yellow fever virus. These are enveloped viruses containing single-stranded RNA. Their morphology is not well defined. The members of this family causing human disease are:



Family Arenaviridae

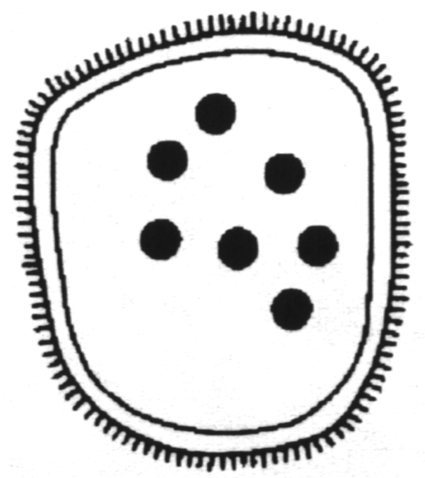

The name is derived from the Latin word, arenaceous, meaning "sandy." This refers to the electronmicrographs of the virus which show they have a granular or sandy surface. The granular appearance may be due to the presence of ribosomes in the virus. They contain single-stranded segmented RNA. Their complex morphology is hidden with an envelope. These viruses commonly produce chronic carrier states in their host. The members of this family causing human disease are:

Arenaviridae
Family Coronaviridae

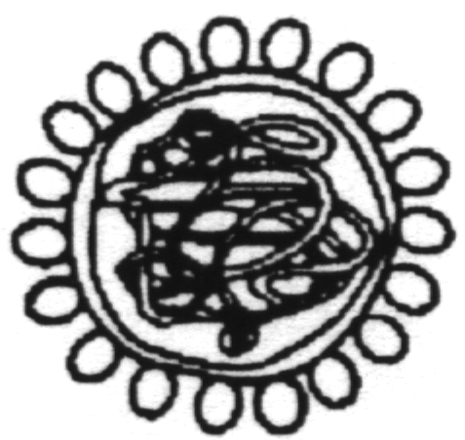

The name refers to a characteristic halo or corona which surrounds each virion. The enveloped virion with a complex morphology contains single-stranded RNA.

Coronaviridae







A member of this family causing human disease is the

Family Retroviridae

The name is derived from the fact that these viruses contain a reverse (retro) transcriptase, i.e., RNA-dependent DNA polymerase. This family contains all of the RNA-containing tumor viruses. Superficially they resemble the orthomyxovirus but they have a more complicated internal structure. The segmented RNA contains 20-30 genes.

Retroviridae



Human infections caused by members of this family include:

Family Bunyaviridae

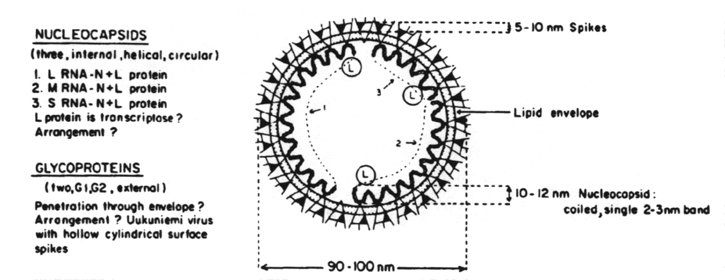

This group is named after Bunyamwera, Uganda where the type species virus was isolated. These are enveloped helical viruses containing segmented single-stranded RNA which is of sufficient size to allow for 20-50 genes. All members of this group are spread by arthropods.

Bunyaviridae



Members of this family causing human disease are:

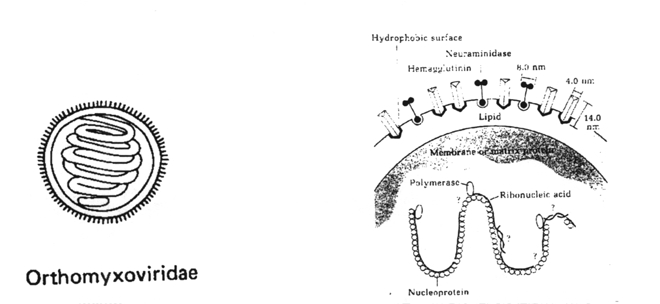

Family Orthomyxoviridae

The members of this family are all influenza viruses which reproduce in mucous membranes. Myxo is a Greek word meaning mucous. The viruses contain a segmented single-stranded RNA genome and exhibit helical symmetry. They have a layer of surface projections, called spikes, as part of their outer wall, as well. These are major antigenic determinants. The genome consists of eight pieces of RNA. They are exceptions to the rule that RNA viruses replicate in the cytoplasm as they replicate in the nucleus. The target tissue is the upper and lower respiratory tract. Members of this family causing human disease are:


Antibodies to the ribonucleoprotein (RNP) are used to differentiate the three major types of influenza virus (A, B or C). Each of these types may have antigenic variants; these are designated A1, A2 ... or B1, B2, ... or C1, C2, ... The hemagglutinin spikes are labelled H1, H2 ... for antigenic variants and the neuraminidase spikes are labelled N1, N2 ... for antigenic variants. Present terminology of influenza virus type A strains designates the geographic area where the strain was first isolated, the year it was isolated and the antigenic composition of its hemagglutinin and neuraminidase. Thus, an H2 N1 strain of the influenza A1 virus first isolated in Missouri in 1984 would be designated:

Family Paramyxoviridae

The members of this family are morphologically similar to the Orthomyxoviridae but are larger. They exhibit helical symmetry and have an envelope, segmented single-stranded RNA and 15-25 genes.

Paramyxoviridae

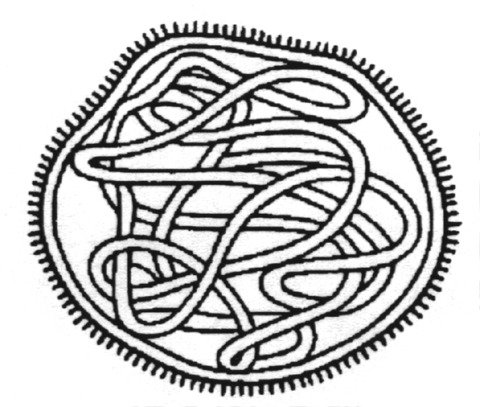

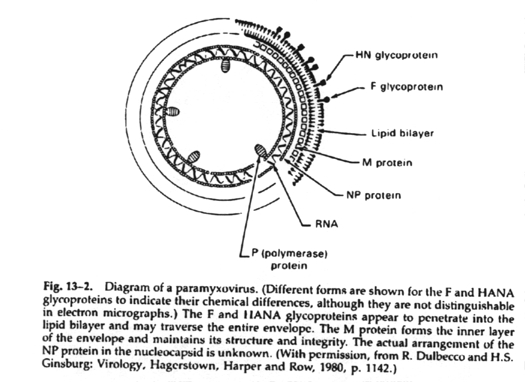

Diagram of paramyxovirus

Members of this family causing human disease are:

Family Rhabdoviridae

The family name is derived from the Greek word, rhabdos, meaning mad which refers to the disposition of animals infected with the rabies virus. This is a bullet-shaped virus with an envelope and single-stranded RNA.

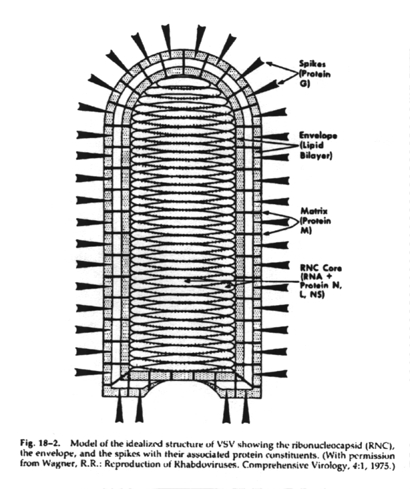

Structure of VSV

Members of this family causing human disease are:

Family Filoviridae

The family name is derived from the filamentous form of the virus. These are enveloped helical nucleocapsids which have a uniform diameter of 80 nm but a variable length up to 14,000 nm. They are pleomorphic with branched, circular and U-shaped forms common. They contain linear single-stranded RNA. These are the most lethal of the human viruses. The target tissue is vascular endothelium. Members of this family include:



You should be familiar with two other groups which are not taxonomic groups but rather ecologic groups. These are:

Arboviruses

The name indicates that these are arthropod-borne viruses, i.e., they are transmitted by a member of the Arthropoda (insects, mites, ticks, lice). The arboviruses include the Togaviridae (except for the rubella virus), the Bunyaviridae, some of the Rhabdoviridae, some of the Arenaviridae and some of the Reoviridae.

Oncoviruses

Those viruses that are oncogenic or cancer-causing belong in this group. This includes all of the Retroviridae as well as some of the Papovaviridae, Adenoviridae, Parvoviridae, and Herpesviridae. Thus oncoviruses are both RNA- and DNA-containing types.

Unclassified viruses

1.    Hepatitis C viruses - A group of viruses which resemble picornaviruses in morphology and are antigenically distinct
        from hepatitis A and hepatitis B virus. They have single stranded linear RNA and an envelope. They cause acute
        hepatitis.

2.    Hepatitis D virus (Delta agent) - A defective virus which requires coinfection with the hepatitis B virus (a helper
        virus) in order to replicate. It has circular, single-stranded RNA and an envelope. In reality this is a viroid.
        However, it has historically been classified as a virus.

3.    Astrovirus - A naked five to six-pointed star-shaped virus with single-stranded RNA. It causes acute gastroenteritis.
        There are five serotypes.



4.    Torovirus - The nucleocapsid has a tubular shape which may be bent into an open torus (a bulging projection)
        conferring a biconcave disk- or kidney-shaped morphology. It contains single-stranded RNA. It causes
        enteric infections.




Summary

1. There are 19 families of viruses that are defined by chemical type of nucleic acid, capsid symmetry, presence or
    absence of an envelope, number of capsomeres, physical type of nucleic acid and number of genes.

2. The Family Parvoviridae, all members of which have linear single-stranded DNA as their chromosome, includes the B11 virus, the agent of fifth disease, bone marrow aplasia and polyarthralgia.

3. The Family Papovaviridae, whose members have circular double-stranded DNA without gaps as their chromosome, includes the agents of warts, nephritis and progressive multifocal leukoencephalopathy.

4. The Family Adenoviridae, members of which contain linear double-stranded DNA as their chromosome, includes the agents of acute respiratory disease (ARD), the common cold, acute hemorrhagic cystitis, epidemic keratoconjunctivitis, gastroenteritis and hepatitis.

5. The Family Herpesviridae, members of which contain linear double-stranded DNA as their chromosome, includes the agents of gingiva stomatitis, herpes genitalis, herpes labialis, herpes gladiatorum, encephalitis, keratoconjunctivitis, chickenpox, shingles, infectious mononucleosis, Burkitt's lymphoma, oropharyngeal carcinoma, cytomegalovirus mononucleosis, cytomegalic inclusion disease, exanthem subitum and Kaposi's sarcoma.

6. The Family Poxviridae, members of which contain linear double-stranded DNA as their chromosome, includes the agents of smallpox, monkeypox, vaccinia, cowpox, orf, pseudocowpox and molluscum contagiosum.

7. The Family Hepadnaviridae, members of which contain circular double-strand DNA with gaps as their chromosome, includes the agent of hepatitis B (serum hepatitis or long-term hepatitis).

8. The Family Picornaviridae, members of which contain linear single-stranded RNA as their chromosome, includes the agents of polio, herpangina, aseptic meningitis, the common cold, epidemic myalgia, hand-foot-mouth disease,
myocarditis, pericarditis, Boston exanthem, cerebellar ataxia, pneumonitis and hepatitis A (infectious hepatitis or
short-term hepatitis).

9. The Family Caliciviridae, members of which contain linear single-stranded RNA as their chromosome, includes the agents of summer diarrhea and hepatitis E (endemic hepatitis).

10. The Family Reoviridae, members of which contain linear segmented double-stranded RNA as their chromosome, the agents of Colorado tick fever and winter diarrhea.

11. The Family Togaviridae, members of which contain linear single-stranded RNA as their chromosome, includes the agents of rubella, eastern equine encephalitis and western equine encephalitis.

12. The Family Flaviviridae, members of which contain linear single-stranded RNA as their chromosome, includes the agents of yellow fever, St. Louis encephalitis, hepatitis G and dengue.

13. The Family Arenaviridae, members of which contain linear segmented single-stranded RNA as their chromosome, includes the agent of lymphocytic choriomeningitis.

14. The Family Coronaviridae, members of which contain linear single-stranded RNA as their chromosome, includes the agent of the common cold.

15. The Family Retroviridae, members of which contain segmented linear single stranded RNA as their chromosome, includes the agents of human T-cell lymphoma and acquired immunodeficiency syndrome (AIDS).

16. The Family Bunyaviridae, members of which contain segmented linear single-stranded RNA as their chromosome, includes the agents of California encephalitis and hantavirus pulmonary syndrome.

17. The Family Orthomyxoviridae, members of which contain segmented linear single-stranded RNA as their
    chromosome, includes the agent of influenza.

18. The Family Paramyxoviridae, members of which contain segmented linear single-stranded RNA as their
      chromosome, includes the agents of parainfluenza, mumps, measles (rubeola), subacute sclerosing
        panencephalitis and respiratory syncytial disease.

19. The Family Rhabdoviridae, members of which contain linear single-stranded RNA as their chromosome, includes the agents of vesicular stomatitis and rabies.

20. The Family Filoviridae, members of which contain linear single-stranded RNA as their chromosome, includes agents of acute hemorrhagic fever.

21. Arboviruses are those transmitted by arthropods (insects, mites, ticks, lice).

22. Oncoviruses are those which cause cancer.

23. Unclassified viruses include those causing hepatitis C, hepatitis D, astrovirus-associated acute gastroenteritis and torovirus-associated enteritis.
